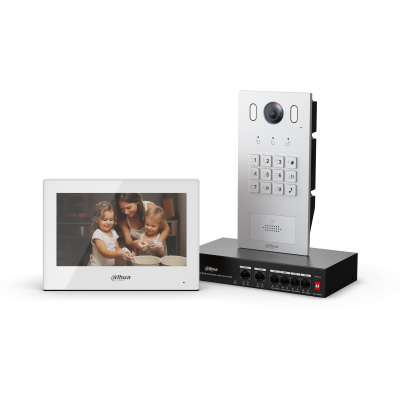

Key Points
- Highly durable and elegant, it is made of aluminum panel, and has a mechanical keypad.
- 2MP HD camera.
- Supports 5,000 users and 10,000 cards.
- Supports multiple unlock methods including password, IC card, and unlocks remotely.
- Connects card readers and controllers through Wiegand.
- Provides 12 VDC, 600 mA power.
- IP65 rated (silicone sealant is required for the shell, see the quick start guide).
- IK08 rated.
- Standard PoE power supply (if the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard).
- 7″ TFT capacitive touch screen, 1024 × 600.
- 6-channel alarm input and 1-channel alarm output.
- Standard PoE. Door station and IPC monitor.
- H.265 and H.264 video decoding.
- High performance and cost-effective.
| Model | DHI-VTO3222E-P |
|---|---|
| System (VTO) | |
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux OS |
| Button Type | Mechanical |
| Interoperability | ONVIF |
| Network Protocol | SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP |
| Basic (VTO) | |
| Camera | 1/2.9″ 2 MP CMOS |
| Field of View | H: 140°, V: 80°, D: 160° |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Video Compression | H.264; H.265 |
| Video Resolution | Main stream: 720p, WVGA, D1, CIF; Sub stream: 1080p, WVGA, D1, QVGA, CIF |
| Video Frame Rate | 25 fps |
| Light Compensation | Auto white light |
| Day/Night | Color/B/W |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression; digital noise reduction |
| Audio Bit Rate | 16 KHz, 16 bit |
| Function (VTO) | |
| Communication Mode | 2-wire |
| Unlock Mode | Card; password; remote unlock |
| Card Type | Mifare card |
| Auto Snapshot | Yes (SD card is inserted in the indoor monitor or door station) |
| Leave Videos | Yes (SD card is inserted in the indoor monitor or door station) |
| Storage | Supports Micro SD card (up to 256 GB) |
| Web Configuration | Yes |
| Performance (VTO) | |
| Card Reading Distance | 0 cm–3 cm (0″–1.18″) |
| Casing Material | Aluminum alloy |
| Capacity (VTO) | |
| Card Capacity | 10,000 |
| Port (VTO) | |
| RS-485 | 1 |
| Wiegand | 1 |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Power Output | 1 (12 V, 600 mA) |
| Door Bell | 1 |
| Exit Button | 1 |
| Lock Control | 1, normally closed by default |
| Network Port | 1 × RJ-45, 10 Mbps/100 Mbps network port |
| Alarm (VTO) | |
| Tamper Alarm | Yes |
| General (VTO) | |
| Appearance Color | Silver |
| Power Supply | 48 VDC, 0.4 A; PoE (802.3af/at) |
| Power Adapter | Optional |
| Installation | Surface mount (surface mount kit includes surface mount bracket) |
| Certifications | CE |
| Product Dimensions | 200.0 mm × 98.0 mm × 35.4 mm (7.87″ × 3.86″ × 1.39″) |
| Protection | IK08, IP65 (Silicone sealant is needed) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | 10%–95% (RH), non-condensing |
| Operating Altitude | Beneath 3000 m (9842.52 ft) |
| Operating Environment | Outdoor |
| Power Consumption | ≤5 W (standby), ≤7 W (working) |
| Gross Weight | 692 g (1.53 lb) |
| Storage Humidity | 30%–75% (RH) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
