Key Points

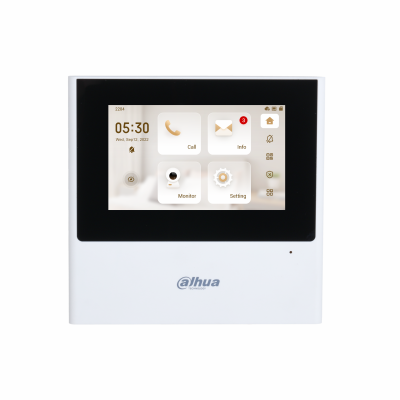

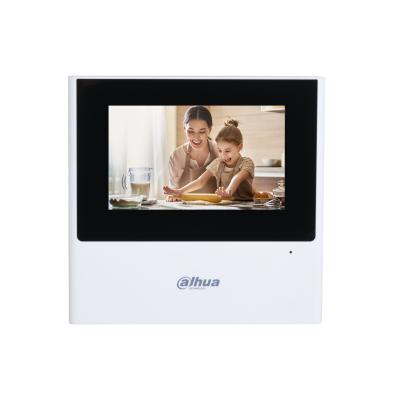

- 4.3-inch TFT Capacitive 480 × 272 Touchscreen
- Device Port: 4-Channel Alarm Input and 1-Channel Alarm Output
- Supports Standard PoE
- Ethernet and Wi-Fi
| Specification | Details |
|---|---|
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux OS |
| Network Protocol | UDP; TCP; IPv4; RTSP; SIP; RTP |
| Basic | |
| Screen Type | Capacitive Touchscreen |
| Display Screen | 4.3″ TFT display |
| Screen Resolution | 480 (H) × 272 (V) |
| Audio Compression | G.711A; G.711U; PCM |
| Audio Input | 1 channel |
| Audio Output | 1 built-in speaker and 1 receiver speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 kHz, 16 bit |
| Function | |
| Communication Mode | Full digital |
| Information Release | Text messages can be received and viewed on the indoor monitor |
| Elevator Control | You can control the elevator through the indoor monitor |
| DND Mode | Do not disturb period can be set. |
| Number of Extensions | Apartment: 4; Villa: 9 |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b; 802.11g; 802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Port | |
| Alarm Input | 4 channels |
| Alarm Output | 1 |
| Network Port | 1 × RJ-45 10/100 M self-adaptive Ethernet port |
| Performance | |
| Casing Material | ABS |
| General | |
| Appearance Color | White |
| Power Supply | 12 VDC, 1 A; standard PoE (IEEE 802.3af/at) |
| Power Adapter | Not included |
| Installation | Surface mount |
| Accessory | Surface mount bracket, alarm ribbon cable, and power-supply pins are provided |
| Product Dimensions | 136.0 mm × 140.0 mm × 25.5 mm (5.35″ × 5.51″ × 1.00″) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–95% (RH), non-condensing |
| Power Consumption | ≤4 W (standby); ≤6 W (working) |
| Gross Weight | 0.21 kg (0.46 lb) |
