Key Points
- 10-inch Colorful LCD, Display Resolution: 1024 * 600
- Wi-Fi Support
- Standard PoE
- Micro SD, Max 32G
- Device Port: 6-Channel Alarm Input, 1-Channel Alarm Output, 1-Channel RS485
| Specification | Details |
|---|---|

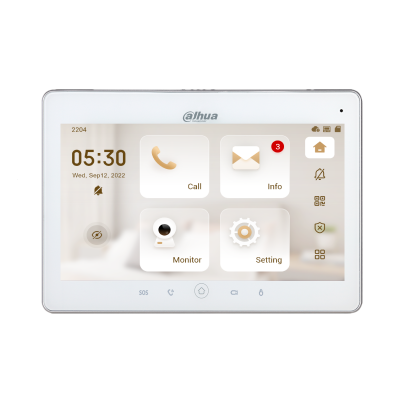

| Model | VTH5241DW-S2 |
| System | |
| Main Processor | Embedded Micro Processor |
| Operation System | Embedded LINUX OS |
| Video | |
| Video Compression | H.264 |
| Audio | |
| Audio Compression | G.711 |
| Audio Input | All-direction Microphone |
| Audio Output | Built-in Loudspeaker |
| Bidirectional Talk | Support Dual-way Bidirectional Talk |
| Display | |
| LCD Screen | 10″ 1024 × 600 |
| Operation Mode | |
| Input | Touch buttons and capacitive screen |
| Interface | |
| Wired Zones | 6 on-board zones |
| Wireless Zones | 8 wireless zones |
| Alarm Out | 1 |
| RS485 | 1 |
| Network | |
| Wi-Fi | IEEE 802.11b/g/n, 2400–2483.5 MHz; CE EIRP ≤20 dBm, FCC Power ≤30 dBm |
| Ethernet | 10M/100Mbps Self-adaptive |
| Network Protocol | TCP/IP |
| General | |
| Memory Slot | Micro SD, Max 32GB |
| Installation | Surface |
| Power | DC 12V; PoE (802.3af) |
| Power Consumption | ≤8W (Working) |
| Working Temperature | -10°C to +55°C |
| Relative Humidity | 10% RH–90% RH |
| Dimensions | 265.0 mm × 180.0 mm × 22.5 mm |
| Weight | 1 kg |
