Key Points
- Connection up to 1 Wiegand reader and 2 RS485 readers
- Support 8 cascading, up to 128 floors permission control
- Alarm In/Out: 6/2
- Alarm records and log records: 30,000
- Maximum support 60 call lift modules
- All floors’ permission will be released if fire alarm triggered
- Remote control via web client
| Specification | Details |
|---|---|
| Technical Specification | |

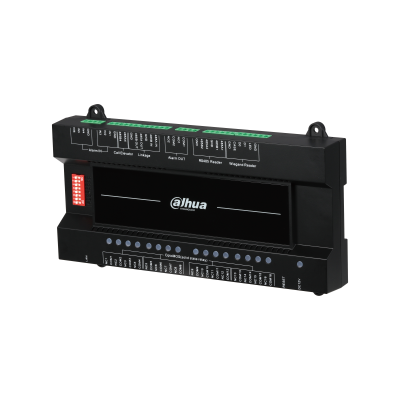

| Model | VTM416 |
| System | |
| Main Processor | ARM Cortex M4@180MHz |
| Communication Type | TCP/IP; RS485, and Wiegand |
| Indicator | |
| Power Indicator | 1 |
| Communication Indicator | 1 |
| Relay Indicator | 16 |
| Interface | |
| Alarm In | 6 (Alarm_in_1 for fire alarm) |
| Alarm Out | 2 |
| RS485 | 4RS485 1: card reader or call lift moduleRS485 2: card reader or call lift moduleRS485 3: cascade with slave lift controllerRS485 4: call lift module |
| Wiegand | 1 |
| Relay Out | 16 |
| General | |
| Installation | Fixed onto the wall; U-shaped guide rail |
| Power | DC 12V, PoE (802.3af) |
| Working Temperature | −20°C ~ +55°C |
| Relative Humidity | 10% ~ 90% RH |
| Dimensions | 210 mm × 116 mm × 29 mm |
| Weight | 1.0 Kg |
