Key Features :

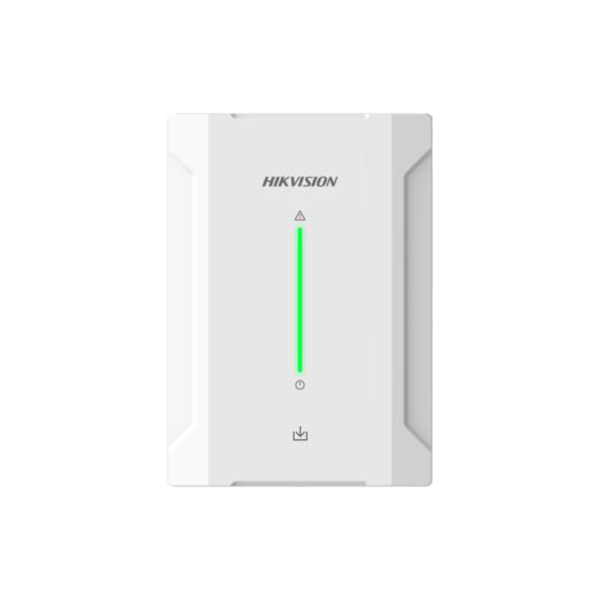

- DS-PM1-I8O2-H is a wired zone expander for AX Hybrid Pro control panel, which has 8 on-board zones and 2 on-board collector outputs. This zone expander communicates with control panel via Speed-X bus, and the maximum distance between zone expander and control panel can be 900m. What’s more, DS-PM1-I8O2-H has another Speed-X bus output for cascading the next zone expander, and the cable distance can be another 900m. In this way, wired input expander is suitable for small to medium applications, like villa, shop, office, hotel, etc.
- 8 on-board wired zones
- Support 3EOL connection(Alarm: 1KΩ; Tamper: 1KΩ; Fault: 2.2KΩ)
- Support zone alarm, tamper, masking, fault, short detection
- 1 power output for wired detectors
- 2 Speed-X bus, supporting wired input expander cascade mode
