CP-UNC-MA21PL3-V3

Original price was: ₹1,000.00.Current price is: ₹500.00.

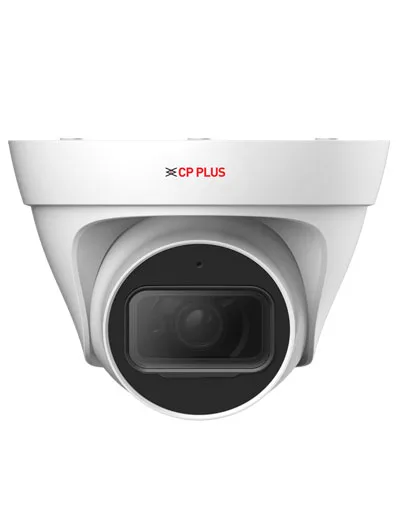

2MP Full HD IR Network Dome Camera – 30Mtr.

1/2.8” 2MP PS CMOS Image Sensor (0.9071 centimeters)
Max. 2MP (1920 × 1080)@25/30fps
Instastream, H.265 and Smart H.264+ dual-stream encoding
DWDR, Day/Night (ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
3.6mm fixed lens (2.8mm Optional)
IR Range of 30 Mtrs, IP67, PoE
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro

Available: 99/99

Category: Uncategorized

Description
Reviews (0)

Description

Image Sensor	1/2.8” 2MP Progressive scan CMOS (0.9071 centimeters)
Effective Pixels	1920(H) x 1080(V)
Minimum Illumination	0.01 Lux @F2.0
S/N Ratio	>56dB
Shutter Speed	Auto/Manual, 1/3~1/100000s
Gain Control (AGC)	Auto/Manual
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
ROI	Yes (4 areas)
Back Light Compensation	BLC / HLC / DWDR
Lens	3.6mm (2.8mm Optional)
Iris	Fixed
Lens Type	Fixed-focal
Max Aperture	F2.0
Angle of View	3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100° 2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120°
ICR	Auto (ICR)/Color/B/W
DORI Distance	3.6mm– 49.7m (Detect) 19.9m (Observe) 9.9m (Recognize) 5m (Identify) 2.8mm– 38.6m (Detect) 15.4m (Observe) 7.7m (Recognize) 3.9m (Identify)
Close Focus Distance	2.8mm- 0.5m ; 3.6mm- 0.8m
Motion Detection	Off / On (4 area, Rectangle)
Video Compression	Instastream/H.265/Smart H.264+/H.264/ H.264B/ MJPEG (only supported by the sub stream)
Bit Rate	H.265: 12 Kbps–6400 Kbps ; H.264: 32 Kbps–6144 Kbps
Resolution	1080P (1920 × 1080); 1.3MP (1280 × 960);720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Video Streaming	Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps)
Privacy Mask	4 Area
Alarm Event	Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception
Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; ONVIF (Profile S/Profile T); CGI; InstaOn; Genetec
Smart Phone	iPhone, iPad, Android Phone
SDK and API	Yes
Cyber Security	Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
IR	IR Range of 30 Mtr., Smart IR
Ethernet	RJ-45 (10/100Base-T)
Weatherproof Standard	IP67
Casing	Metal + Plastic
Micro SD	FTP
Storage Temperature	-40°C to +60°C (-40°F to +140°F)
Operating Temperature	-40°C to +60°C (-40°F to +140°F)
Power Source	DC12V,PoE (802.3af)
Humidity	less than ≤ 95%
Power Consumption	1.4W (12V DC); 2.2W (PoE)
Dimension	85.5 mm × Φ109 mm
Weight	0.24kg
