CP-UNC-TA41L3C-L

Original price was: ₹1,000.00.Current price is: ₹500.00.

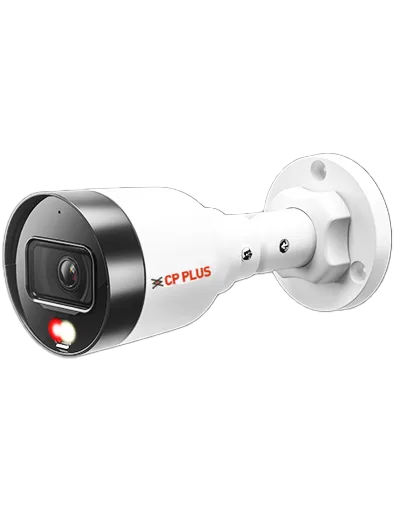

4MP Dual Light Bullet Camera – 30Mtr.

1/2.9″ 4MP PS CMOS Image Sensor (0.8758 centimeter)
Max. 4MP (2560 ×1440)@25/30 fps
Instastream, H.265 and H.264 , dual-stream encoding
WDR, Day/Night (ICR), 3D DNR, ROI, AWB, AGC, BLC, HLC
3.6mm fixed lens (2.8mm Optional)
Support Built-in Mic
Support Motion Detection
IR Range of 30 Mtrs., Warm Light Range of 30 Mtrs., IP67, PoE
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro Lite

Available: 100/100

Category: Uncategorized

Description
Reviews (0)

Description

Image Sensor	1/2.9″ 4MP PS CMOS Image Sensor (0.8758 centimeter)
Minimum Illumination	0.06 lux@F1.6 (Color, 30 IRE), 0.006 lux@F1.6 (B/W, 30 IRE), 0 lux (IR on)
Effective Pixels	2560 (H) × 1440 (V)
Angle Adjustment	Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
Shutter Speed	Auto/Manual 1/3 s–1/100000 s
White Balance	Auto, natural, street lamp, outdoor, manual, regional custom
RAM	64 MB
ROM	16 MB
DORI Distance	Lens 3.6mm: 85.4m (Detect), 34.2m (Observe), 17.1m (Recognize), 8.5m (Identify) Lens 2.8mm: 64.0m (Detect), 25.6m (Observe), 12.8m (Recognize), 6.4m (Identify)
Gain Control(AGC)	Auto/Manual
Lens Type	Fixed-focal
Max. Aperture	F1.6
Close Focus Distance	3.6 mm: 1.7m, 2.8 mm: 1.1m
Lens	3.6mm Fixed Lens (2.8mm Optional)
Lens Mount	M12
Angle of view	3.6 mm: H: 78°, V: 40°, D: 93° 2.8 mm: H: 94°, V: 51°, D: 110°
S/N Ratio	>56dB
Back Light Compensation	BLC/ HLC/ WDR (120 dB)
Audio	Built-in Mic
Encode Strategy	Instastream, H.264+
Video Compression	H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
Stream Capability	Dual streams
Frame Rate	Main stream: 2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Resolution	4M (2560 × 1440), 3M (2304 × 1296), 2M (1920 × 1080), 1.3M (1280 × 960), 1M (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Motion Detection	OFF/ON (4 areas, rectangular)
Privacy Mask	4 areas
Noise Reduction	3D DNR
ROI	Support (4 areas)
Audio Compression	G.711a, G.711Mu, PCM, G.726, AAC
Bit Rate	H.265: 12 kbps–4096 kbps, H.264: 32 kbps–4096 kbps
Bit Rate Control	CBR/VBR
Human body Detection	Support
Protocol	IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, ONVIF (Profile S, Profile T), CGI
IntelliSearch	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Day/Night	Auto(ICR)/Color/B/W
SDK and API	Support
Ethernet	RJ-45 (10/100Base-T)
Alarm Event	Network disconnection, IP conflict, illegal access, motion detection, video tampering, audio detection, security exception, SMD (human)
Cyber Security	Video encryption, Configuration encryption, Digest, WSSE, Account lockout, Security logs, Generation and importing of CA certification, HTTPS, Trusted boot, Trusted execution, Trusted upgrade
User/ Host	6 Users (Total bandwidth: 24 M)
IR	IR Range of 30 Mtr
Warm Light	Warm Light Range of 30 Mtr.
IR Control	Auto, Manual
Mirror Function	Support
IR Number	1 (Multi-core (IR + warm) light)
Image Rotation	0°/180°
Operating Temperature	–40°C to +60°C (–40°F to +140°F)
Operating Humidity	≤95%(RH), non-condensing
Smart IR	Support
Iris Control	Fixed
Browser	IE, Chrome, Firefox
smart phone	iPhone, iPad, Android Phone
Power Source	12 VDC/PoE (802.3af)
Power Consumption	Basic: 1.6 W (12 VDC), 2.0 W (PoE), Max. : 3.7 W (12 VDC), 4.7 W (PoE) (H.265 + intelligence on + WDR+ warm light intensity)
Weatherproof Standard	IP67
Dimensions	162.6mm × 70mm × 70mm
Casing	Plastic
Weight	0.22kg
