| Image Sensor | 1/2.8” 2MP PS CMOS Image Sensor (0.9071 centimeters) |
| Effective Pixels | 1920 (H) × 1080 (V) |
| ROM | 1 GB |
| RAM | 4 GB |
| Focal Length | 3.95 mm–177.7 mm |
| Max. Aperture | F1.6–F4.95 |
| S/N Ratio | More than 55dB |
| Minimum IR | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR/laser light on) |
| Focus Control | Auto; Semi-Auto; Manual |
| White Balance | Auto; Indoor; Outdoor; Tracking; Manual; Sodium lamp; Natural light; Street lamp. |
| Angle of View | H: 68°–2.3°; V: 41.7°–1.2°; D: 75.1°–2.4° |
| Iris Control | Auto; manual; Iris Prio |
| Close Focus Distance | 0.1 m–1 Mtr |
| DORI Distance | Detect: 2451.7 Mtr, Observe: 968.4 Mtr, Recognize: 490.3 Mtr, Identify: 245.2 Mtr |
| Electronic Shutter | 1 s–1/30,000 s |
| Back Light Compensation | BLC / HLC /WDR(120db) |
| Optical Zoom | 45x |
| Digital Zoom | 16x |
| Image Rotation | 180° |
| Pan Travel | Pan: 0°~360° endless, Pan Speed: 240°/sec |
| Tilt Travel | Tilt: –20° to +90°, auto flip 180°, Tilt Speed: 200°/sec |
| Manual Speed | Pan: 0.1°/s–200°/s Tilt: 0.1°/s–120°/s |
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Power-off Memory | Support |
| Wiper | Support |
| Preset Speed | Pan: 240° /s; Tilt: 200° /s |
| Defog | Electronic |
| Special Features | Up to 300 Presets, 5 Pattern, 8 Tour, ,5 Scan |
| Image Stabilization | EIS |
| Privacy Masking | Up to 24 areas can be set, With up to 8 areas in the same view; Multiple colors available |
| Alarm I/O | 7/2 |
| Alarm Linkage | Capture; Recording; Send email; Preset; Tour; Pattern; Alarm digital input |
| Alarm Event | Motion/Tampering Detection; Audio Detection; Network Disconnection Detection; IP Conflict Detection; Memory Card State Detection; Memory Space Detection |
| RS-485 | 1 (baud rate: 1200 bps–115200 bps) |
| Idle Motion | Pattern; Preset; Scan; Tour |
| Day/Night: IR Cut Filter | Color; B/W; Auto; Electronic |
| IR Control | Zoom prio; Manual; Auto; Off |
| IR Number | 2 (IR); 1 (laser) |
| IR Distance | 550 Mtr. |
| Gain Control | Auto; Manual; Gain prio |
| Streaming Method | Unicast/Multicast |
| Video Compression | H.264H; H.264B; H.264; H.265+; MJPEG (Sub Stream); Smart H.264 |
| Encode Strategy | Instastream |
| Bit Rate Control | CBR/VBR |
| Stream Capability | 3 Streams |
| Frame Rate | Main stream: 1080p/1.3MP/720p@(1-50/60 fps), Sub stream 1: D1/VGA/CIF@(1-25/30 fps), Sub stream 2: 1080p/1.3MP/720p/@(1-25/30 fps) |
| Bit Rate | H264: 184 Kbps–9472 Kbps H265: 73 Kbps–5632 Kbps |
| Resolution | 4MP (2560 × 1440); 3MP (2048 × 1536); 3MP (2304 × 1296); 1080p (1920 × 1080); 1.3MP (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| ROI | Support |
| Noise Reduction | 2D-NR; 3D-NR |
| IVS | Tripwire; Intrusion; Crossing fence detection; Loitering detection; Abandoned/Missing object; Fast moving; Parking detection; People gathering; Human alarm classification; Linkage tracking |
| Networking | RJ-45 (10/100 Base-T) |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; |
| Audio Streaming | 1/1 channel In/Out |
| Audio In | 1 channel (LINE IN, bare wire) |
| Audio Out | 1 channel (LINE OUT,bare wire) |
| Protocols | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP, CGI; SDK; ONVIF (Profile S&G&T) |
| Video Metadata | Motor vehicle, non-motor vehicle, face, and human body detection; optimization; capturing pictures; uploading high-quality face snapshots. Attribute extraction of motor vehicle is also supported, where 10 attributes can be detected |
| Face Detection | Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots |
| User/ Host | 20 (total bandwidth: 64 Mbps) |
| Browser | IE 9 and later versions, Chrome 41 and later versions, Firefox 50 and later versions, Safari 10 and later versions |
| SMD | SMD 4.0 |
| Smart Phone | iPhone, iPad, Android Phone |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤ 95% |
| Weatherproof Standard | IP67 , TVS 6000 V lightning proof; Surge protection; Voltage transient protection. |
| Power Source | 36 VDC, 2.23 A ± 30% HIPoE |
| Power Consumption | Basic: 15 W Max: 45 W (IR+PTZ) |
| Dimension | Φ239.8 mm × 382 mm |
| Weight | 6.8 kg |
CP-UNP-F4521R55-DFP
Original price was: ₹1,000.00.₹500.00Current price is: ₹500.00.

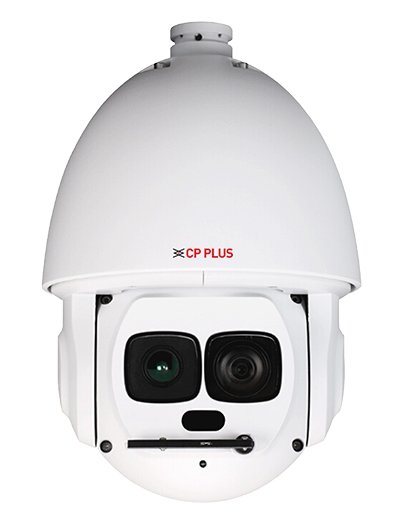

2MP Starlight Laser Network PTZ Camera – 550 Mtr.
- 1/2.8” 2MP PS CMOS Image sensor (0.9071 centimeters)
- Max. 50/60fps@1080P
- 45x Optical zoom, 16x Digital zoom
- WDR, 3D DNR, Day/Night, Defog, ROI, EIS, BLC, HLC
- Up to 300 Presets, 5 Scan, 8 Tour, 5 Pattern
- IR Range of 550 Mtr.
- Max 240° /s pan speed, 360° endless pan rotation
- HI-PoE , IP67
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
Available:
100/100
