CP-UVR-0801L1-4KI3-V2

Original price was: ₹1,000.00.Current price is: ₹500.00.

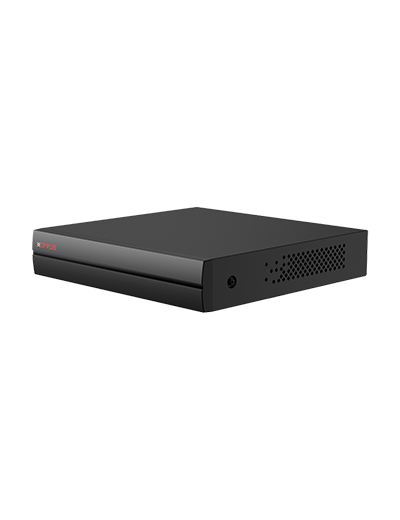

8Ch. 5MP Digital Video Recorder

Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 16 channels IP camera inputs, each channel up to 8MP; Max 128Mbps incoming bandwidth
Supports Full-channel AI Instastream
Support 1 SATA HDD up to 16TB Each, 3 USB Ports
Up to 8 channels video stream (analog channel) SMD Plus
Up to 8 channels video stream (analog channel) perimeter protection
Up to 2 channels video stream (analog channel) human face recognition
AI Instastream/Instastream/H.265 dual-stream video compression
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro

Available: 100/100

Category: Uncategorized

Description
Reviews (0)

Description

Processor	Industrial-grade processor
Operating System	Embedded LINUX
IP Camera Input	Up to 16 channels of IPC access 8 IP channels by default + 8 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Camera Input	1. CVI: 4K@25/30 fps; 6MP@20 fps; 5 MP@20 fps; 5MP@25 fps; 4MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.2. TVI: 4K@15 fps; 5MP@20fps; 4MP@25/30 fps; 3MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.3. AHD: 4K@15 fps; 5MP@20 fps; 4MP@25/30 fps; 3MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps
Two-way Talk	Support (share the same audio input with the first channel)
User Interface	Web; Local GUI
SMD Plus by DVR	8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Perimeter Performance of AI by DVR (Number of Channels)	Advanced Model: 2 channels, 10 IVS for each channel General Model: 8 channels, 10 IVS for each channel
Face Attributes	Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by DVR (Number of Channels)	2 channels (up to 12 face images each channel)
Video Input	8 channel, BNC
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable
Video Compression	H.265+; Smart H.264+; H.264
Encode Strategy	AI Instastream; Instastream
Video Streaming	Main stream: 4K@(1fps-7fps); 6 MP@(1fps-10fps); 5 MP@(1fps-12fps); 4K-N, 4 MP, 3 MP@ (1fps-15fps); 4M-N, 1080p, 720p, 960H, D1,CIF@(1fps–25/30fps); Sub stream: 960H@(1fps– 15fps); D1/CIF@(1 fps–25/30fps)
Video Display Split	1/4/8/9
Audio Input	1-channel RCA, 8-channel BNC (Coaxial Audio)
Bit Rate	32 kbps–6144 kbps
Audio Output	1 channel, RCA
Audio Sample Rate	8KHz, 16 bit Per Channel
Audio Bit Rate	64Kbps Per Channel
Audio Compression	G.711A, G.711U, PCM
General Alarm	Motion detection; video loss; tampering
Alarm Linkage	Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email
Smart Phone	iPhone, iPad, Android Phone
Hard Disk	1 SATA port, up to 16TB capacity disk. The maximum HDD capacity varies with environment temperature.
Recording Playback	1/4/9
Recording Mode	General, motion detection; intelligent; alarm; POS
Playback	Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Backup Mode	USB Device/Network
Interface Ports	2 (1 front USB 2.0 port, 1 rear USB 3.0 port), 1 RS485 Port
Browser	Chrome, IE9 or later, Firefox
Network Mode	Single-address mode
Ethernet	1 (10/100/1000 Mbps Ethernet port, RJ-45)
Protocol	IPv4/IPv6, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF Ver. 2.0
Power Supply	DC 12V, 2A
Power Consumption	<10 W (without HDD)
Operating Humidity	10%–90% (RH)
Operating Temperature	-10°C ~ +55°C (14°F ~ +131°F)
Dimension	260.0 mm × 237.9 mm × 47.6 mm
