Key Points
- Horizontal Angel Bracket
- 0-ch Inclined Bracke
| Specification | Details |
|---|---|
| Basic | |
| Surface Treatment | Powder spraying |

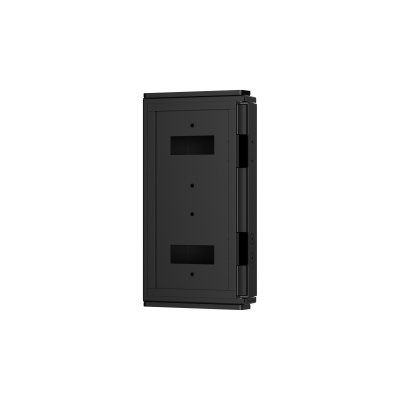

| Product Type | Wall mount bracket |
| Casing Material | SPCC |
| Horizontal Rotation Angle | 22.5°–45° |
| General | |
| Appearance Color | Black |
| Product Dimensions | 134.0 mm × 71.2 mm × 44.0 mm (5.28″ × 2.80″ × 1.73″) |
| Packaging Dimensions | 184.0 mm × 135.0 mm × 89.0 mm (7.24″ × 5.31″ × 3.50″) |
| Transport Package Dimensions | 478.0 mm × 288.0 mm × 204.0 mm (18.82″ × 11.34″ × 8.03″) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Environment | Outdoor |
| Net Weight | 0.32 kg (0.71 lb) |
| Gross Weight | 0.42 kg (0.93 lb) |
| Installation | Wall Mount |
| Applicable Product Model | DHI-VTO2111D-P-S3 |
| Storage Temperature | –10 °C to +70 °C (14 °F to +158 °F) |
| Storage Humidity | 10%–90% (RH) |
