Key Points

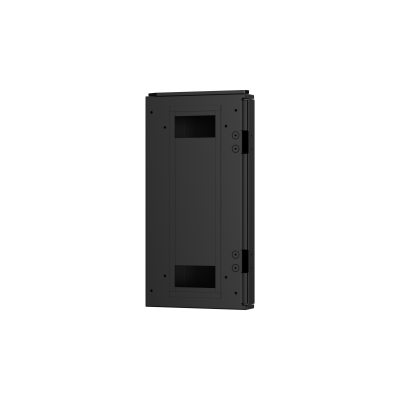

- Horizontal Angel Bracket
| Specification | Details |
|---|---|
| Basic | |
| Surface Treatment | Powder spraying |
| Product Type | Wall mount bracket |
| Casing Material | SPCC |
| Horizontal Rotation Angle | 22.5°–45° |
| General | |
| Appearance Color | Black |
| Product Dimensions | 197.0 mm × 100.2 mm × 55.0 mm (7.76″ × 3.94″ × 2.17″) |
| Packaging Dimensions | 296.0 mm × 162.0 mm × 109.0 mm (11.65″ × 6.38″ × 4.29″) |
| Transport Package Dimensions | 578.0 mm × 313.0 mm × 349.0 mm (22.76″ × 12.32″ × 13.74″) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Environment | Outdoor |
| Net Weight | 0.60 kg (1.32 lb) |
| Gross Weight | 0.81 kg (1.79 lb) |
| Installation | Wall Mount |
| Applicable Product Model | DHI-VTO3222E-P, DHI-VTO3312Q-P |
| Storage Temperature | –10 °C to +70 °C (14 °F to +158 °F) |
| Storage Humidity | 10%–90% (RH) |
