Key Points

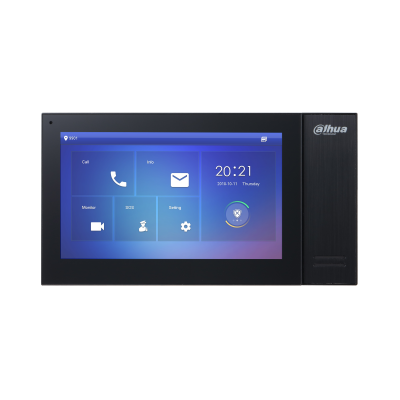

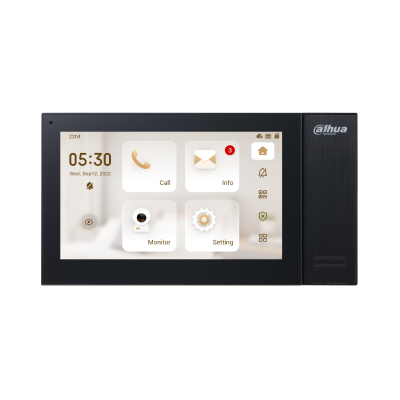

- 7″ TFT Capacitive touch screen, 1024×600
- IPC surveillance
- Alarm integration
- High performance & Cost-effective
| Category | Specification | Details |
|---|---|---|
| Technical Specification | Model | VTH2421FB/FW |
| System | Main Processor | Embedded Micro Processor |
| Operating System | Embedded LINUX OS | |
| Video | Video Compression | H.264 |
| Audio | Audio Compression | G.711 |
| Audio Input | All-direction Microphone | |
| Audio Output | Built-in Loudspeaker | |
| Bidirectional Talk | Support Dual-way Bidirectional Talk | |
| Display | LCD Screen | 7″ 1024 × 600, Capacitive |
| Operation Mode | Input | Touch Screen |
| Interface | Alarm In | 6 |
| Alarm Out | 1 | |
| Network | Ethernet | 10M/100Mbps Self-adaptive |
| Network Protocol | TCP/IP | |
| General | Installation | Surface & Desktop |
| Power | DC 12V | |
| Power Consumption | Standby ≤1W, Work ≤7W | |
| Working Temperature | –10°C to +55°C | |
| Relative Humidity | 10%–90% RH | |
| Dimensions | 119.6 mm × 221.5 mm × 21.5 mm | |
| Weight | 0.35 kg |
