Key Points

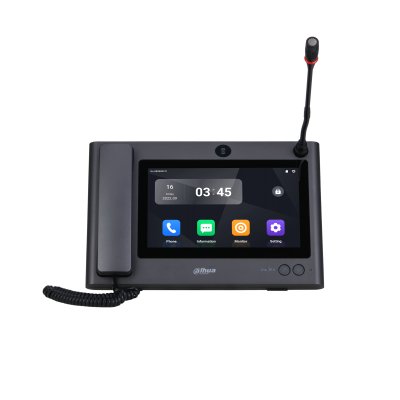

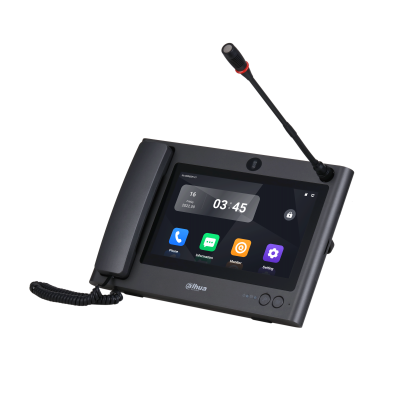

- Highly convenient, it has a 10-inch glass touch screen with a 1024 (H) × 600 (V) resolution and supports speaker phone, gooseneck micro phones and handsets.
- Supports desk mount installation, and the bracket can be adjusted from 0°–45°.
- Supports cameras and performing two-way video calls with master stations and indoor monitors.
- Offers HDMI output with a resolution up to 1024 (H) × 600 (V).
- The intercom can be set for residential areas and use in industries.
- Buidlings intercom: Doors can be remotely unlocked during monitoring and while the intercom is in use.
- Features two-way talk for indoor monitors and door stations.
- Monitors 4 channel door stations and IPCs at the same time.
- Records videos, takes snapshots and stores information on SD cards during monitoring and while the intercom is in use.
- Industry intercom: 300 IP VTAs can be connected to the master station.
- Supports two-way talk with emergency phone terminals and emer gency phone terminal stations.
- Monitors 4 channel door stations and IPCs at the same time.
- Records videos, takes snapshots and stores information on SD cards while the emergency phone terminal and emergency terminal station are performing monitoring and using the intercom.
- Offers two-way talk between stations.
| Category | Specification | Details |
|---|---|---|
| System | Main Processor | Embedded Processor |
| Operating System | Android 11 | |
| Button Type | Mechanical | |
| Interoperability | ONVIF; CGI; SDK; SIP | |
| Network Protocol | IPv4; RTSP; UDP; FTP; RTP; TCP | |
| Basic | Screen Type | Capacitive Touchscreen |
| Display Screen | 10″ TFT display | |
| Screen Resolution | 1024 × 600 | |
| Camera | 5 MP CMOS camera | |
| Field of View | H: 57°; V: 45°; D: 72° | |
| Video Compression | H.264; H.265 | |
| Video Resolution | 720p | |
| Video Frame Rate | 25 fps | |
| Video Bit Rate | 2 Mbps | |
| Audio Compression | G.711a; G.711u; PCM | |
| Audio Input | 3 Channels | |
| Audio Output | Built-in speaker; handset speaker | |
| Audio Mode | Two-way audio | |
| Audio Enhancement | Echo suppression/digital noise reduction | |
| Audio Bit Rate | 16 kHz, 16 Bit | |
| Function | Communication Mode | Full digital |
| Multi-Window Display | Supports splitting to 4 windows and monitoring 4-ch 720p videos | |
| Storage | Micro SD, Max 512 GB | |
| Web Configuration | Yes | |
| Auto Registration | Yes | |
| Access Device | Building mode: Up to 32 VTSs and 32 IPCs; Industry mode: Up to 300 VTAs (Added through IP) and 32 IPCs | |
| Performance | Casing Material | PC + ABS |
| Port | RS-485 | 1 |
| HDMI | 1 | |
| USB | 1 × USB 2.0 port; 1 × USB 3.0 port | |
| Power Output | 1 channel, 12 V/200 mA | |
| Network Port | 1 × RJ-45 100 Mbps/1000 Mbps self-adaptive | |
| General | Appearance Color | Titanium gray |
| Power Supply | 12 VDC, 4A | |
| Power Adapter | Included | |
| Installation | Desk Mount | |
| Certifications | CE; FCC | |
| Accessory | Power adapter; power cord; handset cord | |
| Product Dimensions | 345.00 mm × 224.60 mm × 64.42 mm (13.58″ × 8.84″ × 2.54″) | |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) | |
| Operating Humidity | 5%–90% RH (Non-condensing) | |
| Operating Altitude | 0 m–1300 m (0 ft–4265.09 ft) | |
| Power Consumption | ≤ 5 W (standby), ≤ 10 W (working) | |
| Gross Weight | 2.5 kg (5.51 lb) | |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) | |
| Storage Humidity | 30%–75% RH |
