Key Points

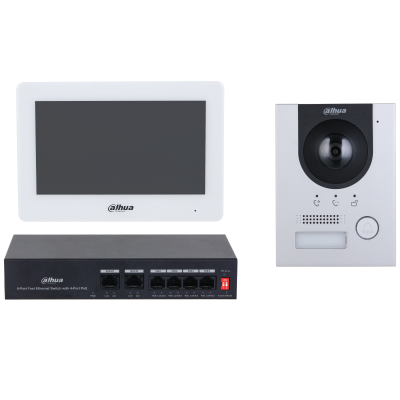

DHI-VTO2201F-P
- Anodized aluminum front panel.
- CMOS low illumination 2MP HD colorful 168.6°camera.
- Video intercom function.
- Provides 12 VDC, 600 mA power.
- Mobile phone app, talk to the visitor or unlock the door remotely on your phone.
- IK07 and IP65 rated (silicone sealant is required for the shell, see the quick start guide).
- Supports H.265 and H.264.
- Standard PoE power supply (if the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard).

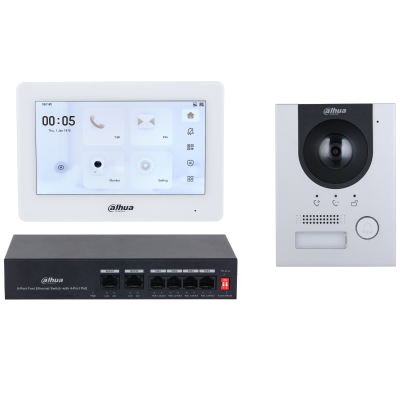

IP Indoor Monitor
- 7″ TFT capacitive touch screen.
- 6-channel alarm input and 1-channel alarm output.
- Supports standard PoE.
- H.265 video coding (H.264 by default).
- SOS alarm.
- Supports daisy chain topology.
- 2.5D screen glass.
| Section | Specification | Details |
|---|---|---|
| System (VTO) | Main Processor | Embedded Processor |
| Operating System | Embedded Linux Operation System | |
| Button Type | Mechanical | |
| Interoperability | ONVIF; CGI | |
| Network Protocol | SIP; TCP; RTP; UPnP; P2P; DNS; UDP; RTSP; IPv4 | |
| Basic (VTO) | Camera | 1/2.9″ 2 MP CMOS |
| Field of View | H: 168.6°; V: 87.1°; D: 176.7° | |
| WDR | 120 dB | |
| Noise Reduction | 3D NR | |
| Video Compression | H.265; H.264 | |
| Video Resolution | Main stream: 720p; WVGA; D1; CIFSub stream: 1080p; WVGA; D1; QVGA; CIF | |
| Video Frame Rate | 25 fps | |
| Video Bit Rate | 256 kbps to 8 Mbps | |
| Light Compensation | Auto IR | |
| Day/Night | Auto(ICR)/Color/B/W; Color/B/W | |
| Audio Compression | G.711a; G.711u; PCM | |
| Audio Input | 1 channel | |
| Audio Output | Built-in speaker | |
| Audio Mode | Two-way audio | |
| Audio Enhancement | Echo suppression/digital noise reduction | |
| Audio Bit Rate | 16 kHz, 16 bits | |
| Function (VTO) | Communication Mode | Full digital |
| Unlock Mode | Remote | |
| Leave Videos | Yes (SD card is inserted in the indoor monitor or door station) | |
| Storage | Supports Micro SD card (up to 256 GB) | |
| Web Configuration | Yes | |
| Performance (VTO) | Casing Material | Aluminum |
| Port (VTO) | RS-485 | 1 |
| Alarm Output | 1 | |
| Power Output | 1 port (12 V, 600 mA) | |
| Exit Button | 1 | |
| Door Status Detection | 1 | |
| Lock Control | 1 | |
| Network Port | 1 × RJ-45 port, 10/100 Mbps network port | |
| Alarm (VTO) | Tamper Alarm | Yes |
| General (VTO) | Appearance Color | Silver |
| Power Supply | 12 VDC, 2 A; PoE (802.3af/at) | |
| Power Adapter | Optional | |
| Installation | Flush mount (The flush mount kit comes with the flush mount bracket) | |
| Certifications | CE | |
| Accessory | Flush mount box (included) | |
| Product Dimensions | 130 mm × 96 mm × 28.5 mm (5.12″ × 3.78″ × 1.12″) | |
| Protection | IK07; IP65 | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) | |
| Operating Humidity | 10%–90% (RH), non-condensing | |
| Operating Altitude | 0 m–3,000 m (0 ft–9,842.52 ft) | |
| Operating Environment | Outdoor | |
| Power Consumption | ≤4 W (standby), ≤5 W (working) | |
| Gross Weight | 0.48 kg (1.06 lb) | |
| Storage Humidity | 30%–75% (RH), non-condensing | |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) | |
| System (VTH) | Main Processor | Embedded Processor |
| Operating System | Embedded Linux Operation System | |
| Button Type | Touch button | |
| Interoperability | ONVIF | |
| Network Protocol | SIP; IPv4; RTSP; RTP; TCP; UDP | |
| Basic (VTH) | Screen Type | Capacitive Touchscreen |
| Display Screen | 7″ TFT | |
| Screen Resolution | 1024 (H) × 600 (V) | |
| Audio Compression | G.711a; G.711u; PCM | |
| Audio Input | 1 | |
| Audio Output | Built-in speaker | |
| Audio Mode | Two-way audio | |
| Audio Enhancement | Echo suppression | |
| Audio Bit Rate | 16 kHz, 16 bits | |
| Function (VTH) | Communication Mode | Full digital |
| Information Release | Supports viewing text announcement from the center (insert an SD card to receive and view pictures) | |
| Leave Videos | Yes (SD card inserted in VTH is needed) | |
| DND Mode | Do not disturb period can be set; Do not disturb mode can be set | |
| Number of Extensions | Villa: 9; apartment: 4 | |
| Storage | Supports Micro SD card (up to 64 GB) | |
| Port (VTH) | RS-485 | 1 |
| Alarm Input | 6 channel (switch quantity) | |
| Alarm Output | 1 channel | |
| Power Output | 1 port (12 V, 100 mA) | |
| Door Bell | Yes, reusing any alarm input port | |
| Network Port | 1, 10/100 Mbps Ethernet port | |
| Performance (VTH) | Casing Material | PC + ABS |
| General (VTH) | Appearance Color | White |
| Power Supply | 12 VDC, 1 A; Standard PoE | |
| Power Adapter | Optional | |
| Installation | Surface Mount | |
| Certifications | CE; FCC; UL | |
| Accessory | Bracket (standard); Alarm ribbon cable (standard) | |
| Product Dimensions | 189.0 mm × 130.0 mm × 26.9 mm (7.44″ × 5.12″ × 1.06″) | |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) | |
| Operating Humidity | 10%–95% (RH), non-condensing | |
| Operating Altitude | 0 m–3,000 m (0 ft–9,842.52 ft) | |
| Operating Environment | Indoor | |
| Power Consumption | ≤2 W (standby), ≤6 W (working) | |
| Gross Weight | 0.74 kg (1.63 lb) | |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) | |
| Storage Humidity | 30%–75% (RH), non-condensing | |
| System (Networking Device) | Main Processor | Embedded Processor |
| Port (Networking Device) | Network Port | 4 × PoE ports with 10/100 Mbps Base-TX2 × uplink ports with 10/100 Mbps Base-TX |
| General (Networking Device) | Appearance Color | Black |
| Power Supply | Built-in power supply: 100–240 VAC | |
| Certifications | CE; FCC | |
| Product Dimensions | 194.0 mm × 108.1 mm × 35.0 mm (7.64″ × 4.26″ × 1.38″) | |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) | |
| Operating Humidity | 10%–90% (RH), non-condensing | |
| Power Consumption | Idling: 0.5 W; Full load: 36 W | |
| Gross Weight | 1.11 kg (2.15 lb) |
