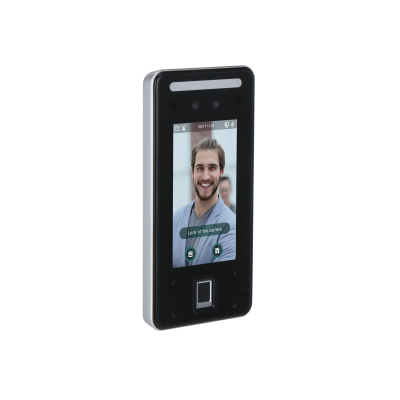

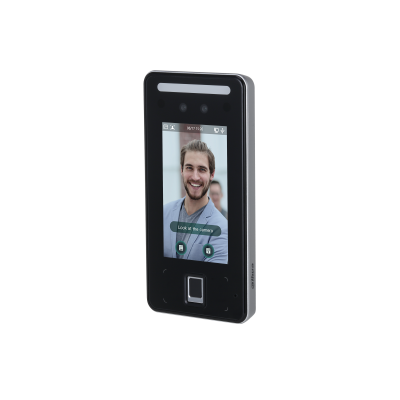

FACT Access Control Terminal
Key Points
- 4.3-inch LCD touch screen; resolution 480 × 272
- 2MP wide-angle dual lens camera; support DWDR, white light fill light and IR fill light
- Support face, card, password ,fingerprint unlock and unlock through their combinations; support unlock by period
- Support QR code unlock for visitors
- User data can be stored at the access controller; can hold 6000 face images and work without network
- Face-camera distance: 0.3 m-1.5 m
- Face verification accuracy 99.5%; face comparison speed 0.3s per person; low false recognition rate; support liveness detection, Anti- fake.
| Category | Specification | Details |
|---|---|---|
| System | Main Processor | Embedded Processor |
| Internet Protocol | IPv4; RTSP; RTP; TCP; UDP; P2P | |
| OSDP Protocol | Support | |
| Interoperability | CGI | |
| SDK | Support | |
| Basic | Display | 4.3-inch TFT screen |
| Screen Type | Capacitive touch screen | |
| Screen Resolution | 480 × 272 | |
| Camera | 2 MP CMOS high definition camera | |
| WDR | DWDR | |
| Light Compensation | Auto white light; Auto IR light | |
| Voice Prompt | Support | |
| Casing | PC; Metal rear case | |
| Function | Unlock Mode | Card / Password / Fingerprint / Face unlock and unlock through their combinations |
| Card Reading Type | IC card | |
| Period List | 128 | |
| Holiday Period | 128 | |
| First-Card Unlock | Support | |
| Remote Verification | Support | |
| Peripheral Card Reader | 1 × RS-485; 1 × Wiegand | |
| Multiple User Unlock | Support | |
| Real-Time Surveillance | Support | |
| Web Configuration | Support | |
| Performance | Face Recognition Height | 0.9 m–2.4 m |
| Face Recognition Distance | 0.3 m–1.5 m | |
| Face Verification Accuracy | 99.50% | |
| Fingerprint Sensor Type | Capacitive | |
| Fingerprint Verification Mode | 1:N | |
| Fingerprint Comparison Time | 1.0 s | |
| Fingerprint Recognition Time | 0.5 s | |
| Capacity | User Capacity | 6,000 |
| Face Image Capacity | 6,000 | |
| Fingerprint Capacity | 6,000 | |
| Card Capacity | 6,000 | |
| Password Capacity | 6,000 | |
| Record Capacity | 150,000 | |
| Port | RS-485 | 1 |
| Wiegand | 1 | |
| USB | 1 × USB 2.0 port | |
| Network | 1 × RJ-45, 10/100 Mbps self-adaption | |
| Alarm Input | 1 | |
| Alarm Linkage | Support | |
| Exit Button | 1 | |
| Door Status Detection | 1 | |
| Lock Control | 1 | |
| Alarm | Anti-Passback | Support |
| Tamper | Support | |
| Duress | Support | |
| Door Sensor Timeout | Support | |
| Intrusion | Support | |
| Illegal Card Exceeding Threshold | Support | |
| Duress Fingerprint | Support | |
| General | Power Supply Mode | 12V DC; 2A |
| Protection Grade | IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) | |
| Power Consumption | ≤ 24W | |
| Product Dimensions | 174.0 mm × 87.5 mm × 22.5 mm (6.85″ × 3.44″ × 0.88″) (H × W × D) | |
| Working Temperature | –30°C to 60°C (–22°F to 140°F) | |
| Working Humidity | 5% RH–95% RH (non-condensing) | |
| Working Environment | Indoor; Outdoor | |
| Gross Weight | 0.78 kg (1.72 lb) | |
| Accessory | Bracket (provided) | |
| Installation Method | Surface mount | |
| Certification | CE; FCC |
