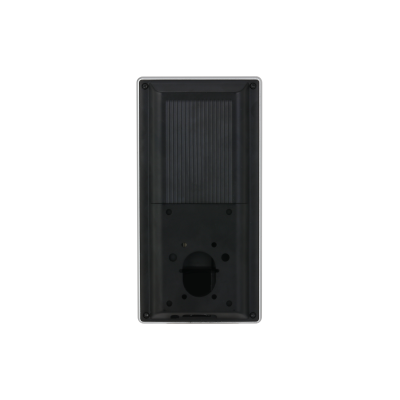

Dahua Single Door Face Recognition,Card Swiping,Password Face Recognition Access Controller
Key Points
- Visible Light Facial Recognition and Liveness Detection
- 6,000 Faces, 10,000 Cards, 6,000 Passwords
- 2-MP CMOS Dual-lens Camera
- 4.3 inch Touch Screen with Resolution of 272 x 480
- Face Recognition Duration< 0.2s/person, Accuracy rate ≥ 99.9%
- Video Intercom and App Control
- DC12V1A Power Output for Card Reader and Lock
- Easy Configuration via Web Client and Mobile Client
| Specification | Details |
|---|---|
| System | |
| Main Processor | Embedded Processor |
| Button Type | Touch button |
| Network Protocol | IPv4; RTSP; UDP; P2P; IPv6; RTP; TCP; SIP |
| OSDP Protocol | Yes |
| Interoperability | ONVIF; CGI |
| SDK and API | Yes |
| Basic | |
| Product Type | Standalone |
| Display Screen | 4.3-inch display screen |
| Screen Type | Capacitive Touchscreen |
| Screen Resolution | 272 (H) × 480 (V) |
| Camera | 2-MP CMOS HD dual-lens camera |
| WDR | DWDR |
| Light Compensation | Auto IR |
| Voice Prompt | Yes |
| Speaker | Yes |
| Casing Material | PC + ABS |
| Function | |
| Verification Method | Card; Password; QR Code; Face Recognition |
| Door Open Notification Mode | Quick mode; Simple mode; Standard mode; Comparison mode |
| Period List | 128 periods |
| Holiday Period | 128 periods |
| Network Update | Yes |
| First User Unlock | Yes |
| Remote Verification | Yes |
| Restricted List / Trusted List | Yes |
| Advertisement Playing | Plays advertisements in video and image format |
| Peripheral Card Reader | 1 × RS-485 card reader; 1 × Wiegand card reader |
| Multi-user Authentication | Yes |
| Real-time Monitoring | Yes |
| Multi-factor Authentication | Yes |
| Capture Function | Yes |
| Web Configuration | Yes |
| Auto Registration | Yes |
| RFID | |
| Card Type | IC card (Mifare card); Desfire card (EV3, compatible with Dahua card by default) |
| Modulation Type | ASK |
| Frequency Range | 13.56 MHz |
| Max. Transmission Power | 42 dBuA/m @ 10 m |
| Network | |
| Max. Transmission Power | ≤20 dBm @ 2,400–2,483.5 MHz |
| Wi-Fi | Yes |
| Wireless Standard | IEEE 802.11b / 802.11g / 802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Performance | |
| IC Card Encryption | Yes |
| Card Reading Distance | 0 cm–3 cm (0″–1.18″) |
| Face Recognition Height Range | 0.9 m–2.2 m (2.95 ft–7.22 ft) |
| Face Recognition Distance | 0.3 m–2.0 m (0.98 ft–6.56 ft) |
| Face Recognition Accuracy | 99.9% |
| Face Recognition Time | 0.2 s |
| User | |
| User (Card) Type | Normal user; VIP users; patrol users; guest user; blocklist user; other user; custom user 1; custom user 2 |
| Capacity | |
| Face Image Capacity | 6,000 |
| User Capacity | 6,000 |
| Card Capacity | 10,000 |
| Password Capacity | 6,000 |
| Record Capacity | 300,000 |
| Port | |
| RS-485 | 1 port that can also be used by the Wiegand card reader |
| Wiegand | 1 port that can also be used by the RS-485 card reader |
| USB | 1 × USB 2.0 port |
| Network Port | 1 × 10/100 Mbps Ethernet port |
| Alarm Linkage | Yes |
| Doorbell | 1 channel |
| Exit Button | 1 channel |
| Door Status Detection | 1 channel |
| Lock Control | 1 channel |
| Power Output Port | 1 channel (12 V, 1.0 A) |
| Alarm | |
| Anti-pass Back | Yes |
| Tamper Alarm | Yes |
| Duress Alarm | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Illegal Card Exceeding Threshold | Yes |
| General | |
| Power Adapter | Included |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | ≤12 W |
| Product Dimensions | 167.4 mm × 84.4 mm × 24.0 mm (6.59″ × 3.32″ × 0.94″) (H × W × D) |
| Packaging Dimensions | 219 mm × 122 mm × 58 mm (8.62″ × 4.80″ × 2.28″) (H × W × D) |
| Transport Package Dimensions | 513 mm × 375 mm × 469 mm (20.20″ × 14.76″ × 18.46″) (H × W × D) |
| Operating Temperature | –10 °C to +45 °C (+14 °F to +113 °F) |
| Operating Humidity | 0%–90% RH, non-condensing |
| Operating Altitude | 0 m–1,300 m (0 ft–4,265.09 ft) |
| Operating Environment | Indoor |
| Gross Weight | 0.41 kg (0.90 lb) |
| Accessory | The bracket is included |
| Installation | Wall Mount; Floor Bracket Mount; Desk Bracket Mount |
| Storage Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Storage Humidity | 30%–75% |
